| Fərdi emal | No |
| Brend | Skirui |
| Model | TLG85M-BS / TLG85M-BN / TLG85M-WS |
| Ölçü | 85 |
| Çəki | 0.5 |
| Məhsul № | AL672477322444 |
|
Model
|
TLG85M
|
|
|
|
Working Voltage
|
12V/24V
|
Speed Range
|
0~299 (MPH, Knots, Km/h)
|
|
Working temperatures
|
- 40 to 85°C
|
Mileage Range
|
0-999 999 (Mi,NMI,KM )
|
|
Installation Diameter
|
85mm (3 3/8")
|
OverSpeed Buzzer Alarm
|
Value Adjustable
|
|
Face
|
Black, White
|
Tachometer Ratio
|
Programmable
|
|
Waterproof
|
IP66
|
Total Mileage
|
Adjustable
|
Specifications

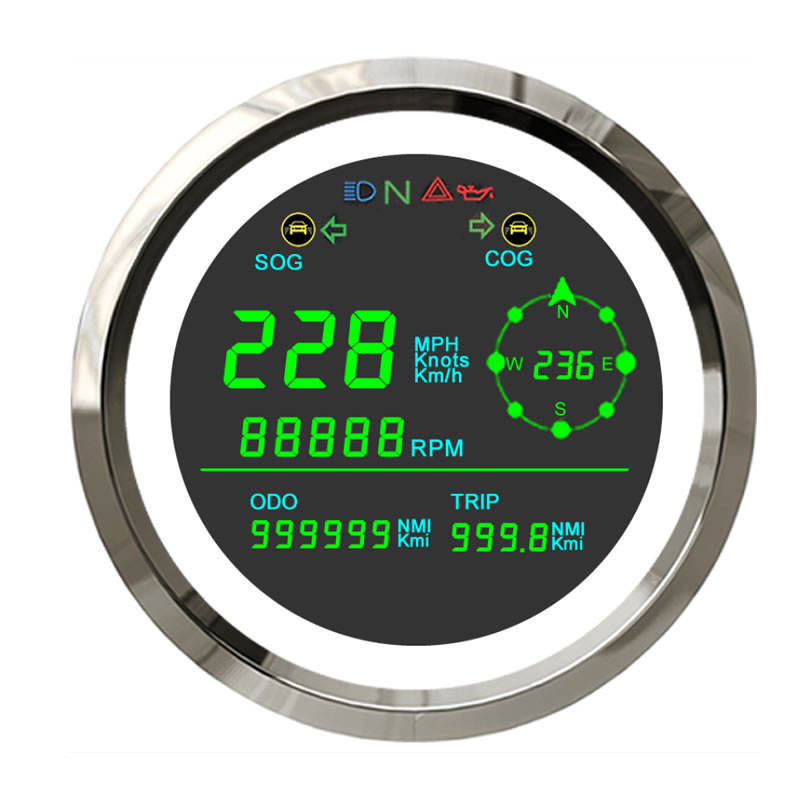

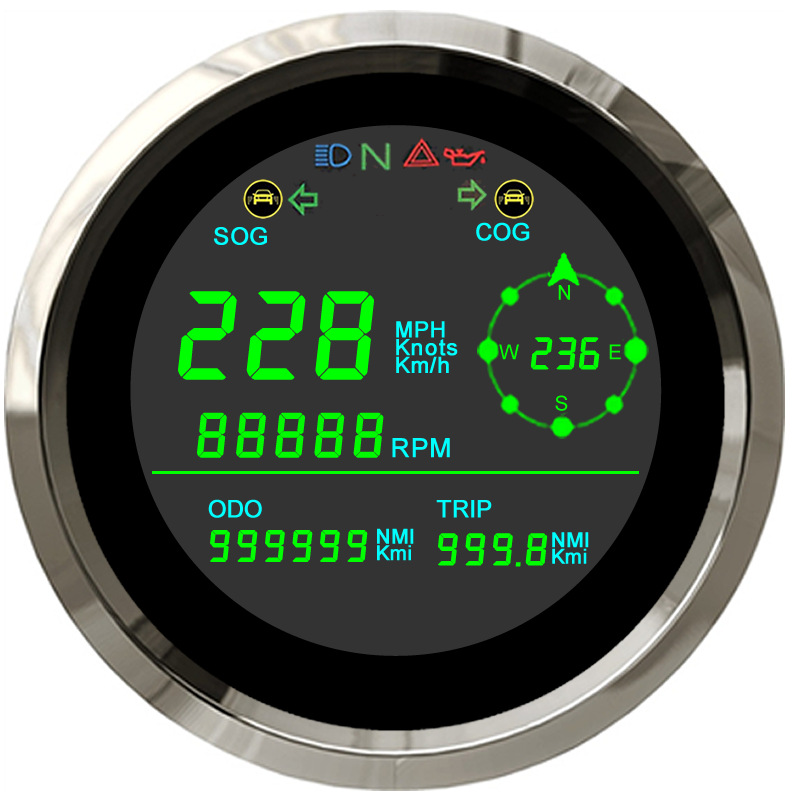

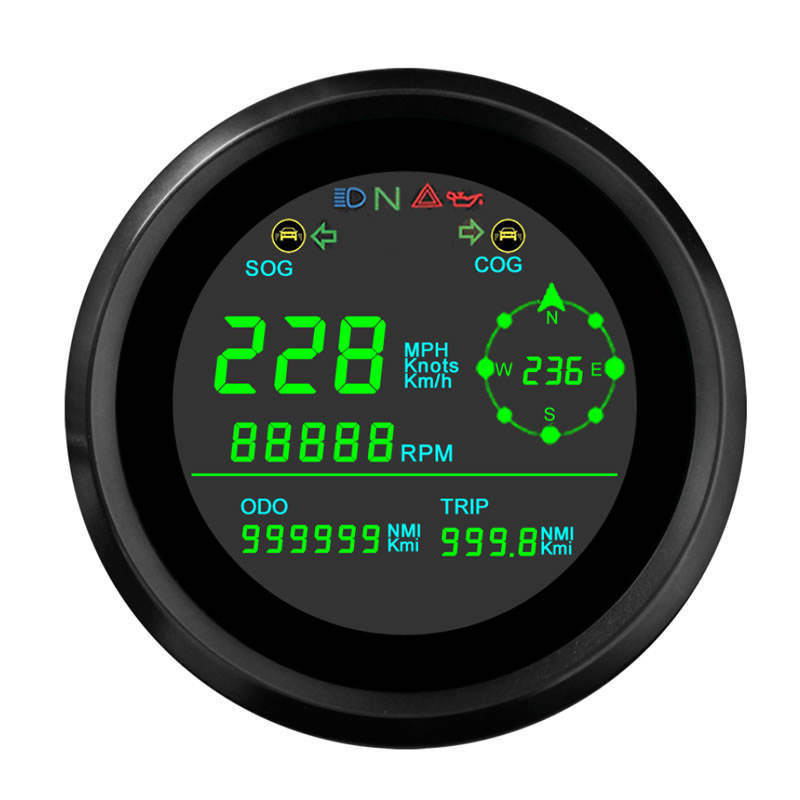

* Electronic Speedometer with Unique High Definition and Contrast Ratio LCD

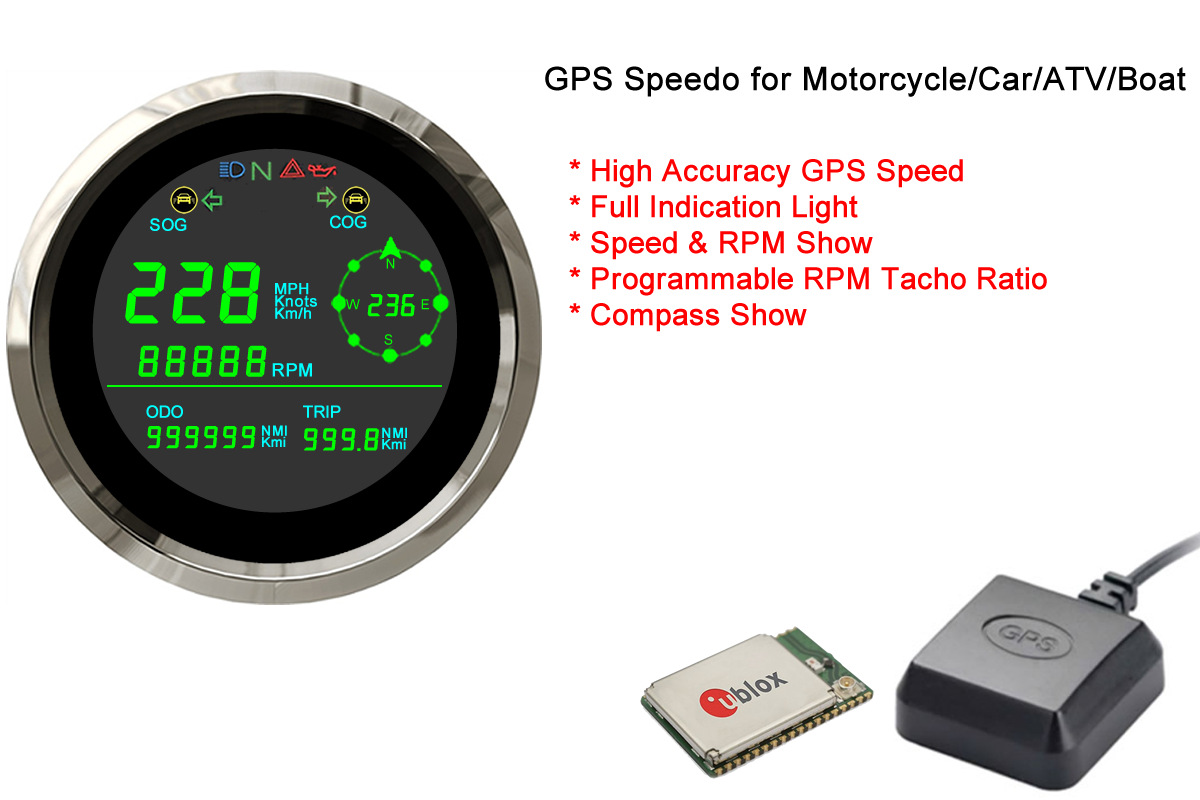

* No Mechanic Sensor, get speed signal from GPS, No GPS Stationary Drift
* Total Mileage Adjustable, Trip Odometer Reset
* GPS Blind Area Odometer Compensation
* Switch unit between MPH(Mi), Knots(NMI) and Km/h (KM)
* Speed Range: 0~299 (MPH, Knots, Km/h)
* Mileage Range: 0-999 999 (Mi,NMI,KM )
* Trip Odometer Range: 0~999.9 (Mi,NMI,KM )
* Tachometer Ratio Programmable (support W-Terminal connection directly)

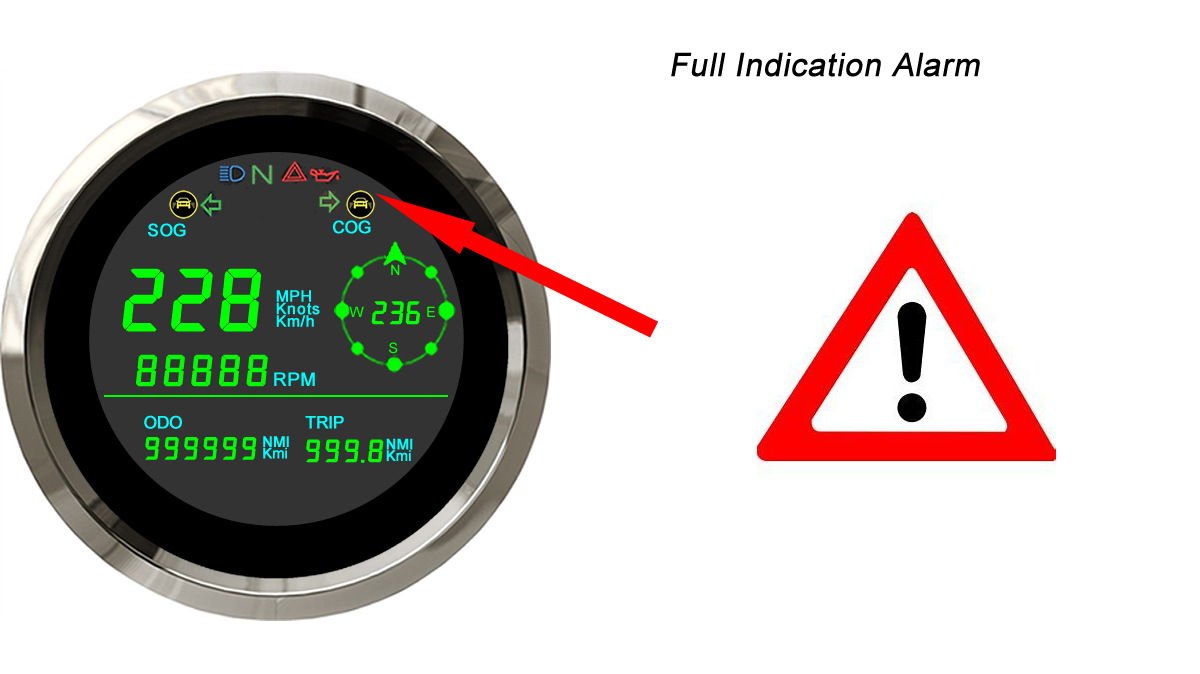

* Indicator: High Beam, Neutral, Alarm, Oil Pressure Alarm, Left Turn, Right Turn, BSD(Blind Spot Alarm with BSD Sensor )
* OverSpeed Buzzer Alarm (Value Adjustable)
* Bezel: Black/Silver 316L Stainless Steel (Anti-Corrosion)
* Reverse polarity protection and anti-fogging performance
* Working Voltage:12V/24V (If installed on E-bike, which has max 80V DC, power adapter will be needed)
