OBDSTAR MS50 Motosiklet Skaneri Ağıllı Motosiklet Diaqnostikası

产品图片展示

产品英文介绍（Product introduction in English）

OBDSTAR MS50 Motorcycle Scanner Motorbike Diagnostic Tool Free Update Online

ID NO.: CTP217

Product Description

OBDSTAR MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.

OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool
OBDSTAR MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent  motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience;
OBDSTAR MS50 Features:
1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support  most of the Asia and Europe models;
9.OBDSTAR MS50 Supported car list.
Notice: Support English only, can't change language.
OBDSTAR MS50 Advanced Function:
1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.
Motorcycle/Snowmobile/ATV/UTV Support Car Series:
Asia:
Honda、Kawasaki、Kymco、Suzuki、SYM、Yamaha、PGO、Hardford、AEON；
Europe:
Benelli、KTM、Piaggio、Vespa
More functions under developing...
Different configurations include different software. For details, please contact OBDSTAR.
Function Display:
1) Main Page/Brand Supported
2) Help Data/Technical Bulletin/Fault Guidance
3）Supported System List/ Manual Service Function
4) Manual maintenance reset
5) Diag socket/Diag Connector Location
6) Data Flow Text/ Waveform Diagram/Instrument Diagram
7)Special Function-Benelli
8) Special Function-KTM
9) Special Function-Piaggio
10) Special Function-Vespa
OBDSTAR MS50 Latest Update Information:

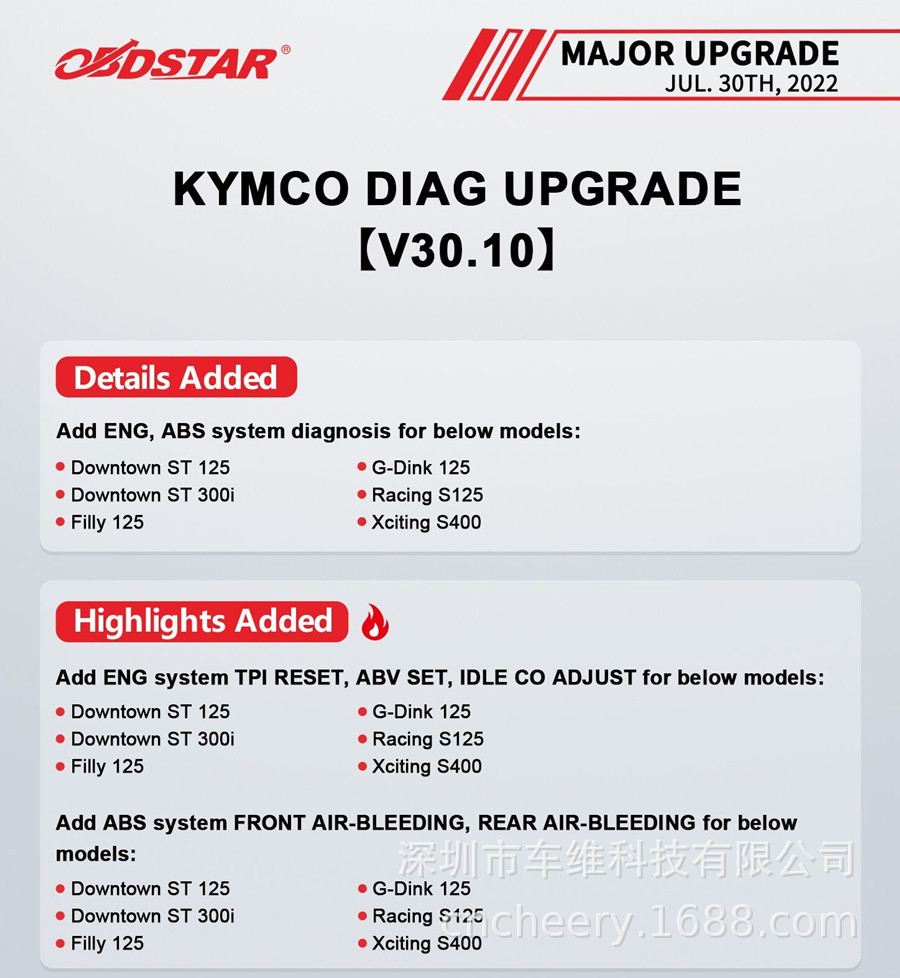

KYMCO DIAG UPGRADE【V30.10】UPGRADE on Jul 30th, 2022

MS50 BAJAJ [V30.00] UPGRADE on Mar 30th, 2021:

MS50 ENFIELD[V30.00] UPGRADE on Mar 30th, 2021

Product Parameters
Operation System: Android 5.1.1
CPU: Exynos4418  Dual Core ARM Cortex A9
Battery: 2500mA, rechargeable polymer lithium battery
Extension memory card:  32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD：5.0 inch
LCD resolution: 800*600
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature:  -20℃～55℃（14℉～131℉）
Storage temperature:  -20℃～70℃（-4℉～158℉）
Weight:  700g（Main Unit)
Dimension: 140mm*89mm*18mm

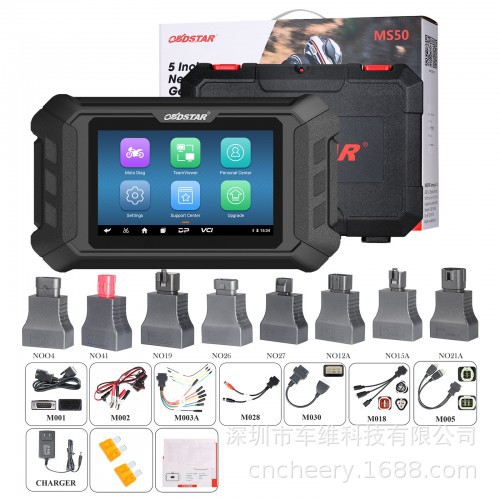

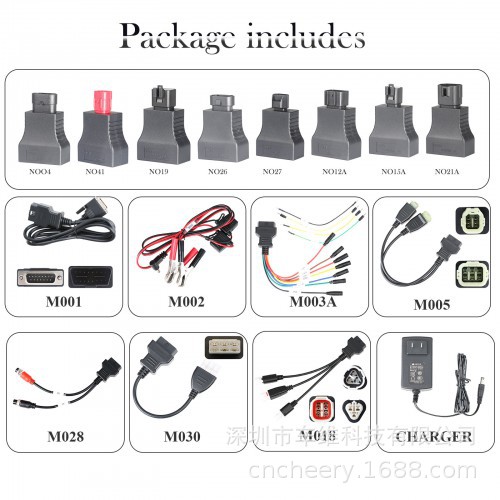

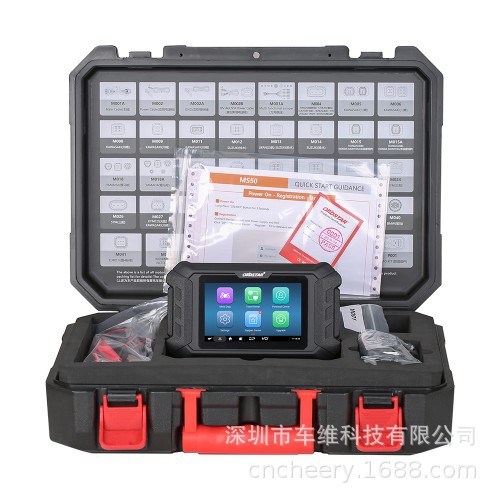

Package includes:
1pc x M001      Main Cable
1pc x M002      Power Cable
1pc x M003A    Multi functional jumper
1pc x M004      APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005      KAWASAKI
1pc x M012      SUZUKI
1pc x M015A    HONDA/HONDA MONTESA
1pc x M018      YAMAHA
1pc x M019      KTM
1pc x M021      AEON/BENELLI/BENELLI DSK
1pc x M026      SYM
1pc x M027      KYMCO/KAWASAKI
1pc x M028      PGO
1pc x M030      HARTFORD
1pc x M041      EURO V
1pc x 12V2A    CHARGER

产品中文介绍（英译中-谷歌翻译）

OBDSTAR MS50 摩托车扫描仪摩托车诊断工具在线免费更新

ID NO.: CTP217

产品描述

OBDSTAR MS50是一款具有超强性能和工业外观设计的便携式平板电脑。是为客户量身打造的新一代智能摩托车诊断设备。基于RK3128四核处理器，配备5.0英寸电容触摸屏，为客户带来专业诊断体验。

OBDSTAR MS50智能摩托车诊断仪
OBDSTAR MS50是一款具有超强性能和工业外观设计的便携式平板电脑。是为客户量身打造的新一代智能摩托车诊断设备。基于RK3128四核处理器，配备5.0英寸电容触摸屏，为客户带来专业诊断体验；
OBDSTAR MS50 特点：
1、全新Android 5.1.1操作系统
2、简单直观的菜单引导，让您快速掌握设备操作；
3、提供读码、清码、数据流转、动作测试、设置、编码等完整的诊断功能；
4、菜单任意选择更方便快捷；
5.实时数据流记录回放，快速准确定位传感器及元器件故障；
6. Wi-Fi连接互联网，一键软件升级；
7、一键远程功能，OBDSTAR技术人员远程协助；
8.支持大部分亚欧机型；
9. OBDSTAR MS50支持车型列表。
注意：只支持英文，不能切换语言。
OBDSTAR MS50进阶功能
1、首创故障引导、帮助资料、技术公告、诊断插座等，助您准确高效诊断；
2、文本、波形图、仪表图等多样化的数据流显示方式，让您轻松分析故障；
3、自动扫描、自动VIN识别、控制模块编程编码、ECU设置、仪表编码、胎压监测系统、保养灯复位、CO调节、怠速调节、A/F值复位、ABS控制单元设置、EOL模式、变速箱内存重置、清电脑内存等
摩托车/雪地车/ATV/UTV支持车系：
亚洲：
Honda、Kawasaki、Kymco、Suzuki、SYM、Yamaha、PGO、Hardford、AEON；
欧洲：
Benelli、KTM、Piaggio、 Vespa
更多功能正在开发中...
不同的配置包含不同的软件。有关详细信息，请联系 OBDSTAR。
功能展示
1) 主页/品牌支持
2) 帮助资料/技术公告/故障指导
3）支持的系统列表/手动服务功能
4）手动维护复位
5）诊断插座/诊断连接器位置
6）数据流文本/波形图/仪表图
7）特殊功能-Benelli
8）特殊功能-KTM
9）特殊功能- Piaggio
10) 特殊功能
-Vespa OBDSTAR MS50 最新更新信息：
KYMCO DIAG UPGRADE【V30.10】UPGRADE on Jul 30th, 2022

MS50 BAJAJ [V30.00] UPGRADE on March 30th, 2021:

MS50 ENFIELD[V30.00] 2021年3月30日升级

产品参数
操作系统：Android 5.1.1
CPU：Exynos4418 双核 ARM Cortex A9
电池：2500mA，可充电聚合物锂电池
扩展存储卡：支持 32G Micro SD (TF) 卡
存储容量：16GB
LCD：5.0 英寸
LCD 分辨率：800* 600
触摸屏：电容触摸屏
Wifi：支持
摄像头：5兆后视摄像头
工作温度：-20℃～55℃（14℉～131℉）
存储温度：-20℃～70℃（-4℉～158℉）
重量：700g（主机）
尺寸：140mm*89mm*18mm
包装包括：
1pc x M001 主电缆
1pc x M002 电源线
1pc x M003A 多功能跳线
1pc x M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005 KAWASAKI
1pc x M012 SUZUKI
1pc x M015A HONDA/HONDA MONTESA
1pc x M018 YAMAHA
1pc x M019 KTM
1pc x M021 AEON/BENELLI/BENELLI DSK
1pc x M026 SYM
1pc x M027 KYMCO/KAWASAKI
1pc x M028 PGO
1pc x M030 HARTFORD
1pc x M041 EURO V
1pc x 12V2A 充电器
