VXDIAG VCX SE Subaru OBD2 diaqnostika aləti 2022.1 ilə

产品图片展示

产品英文介绍（Product introduction in English）

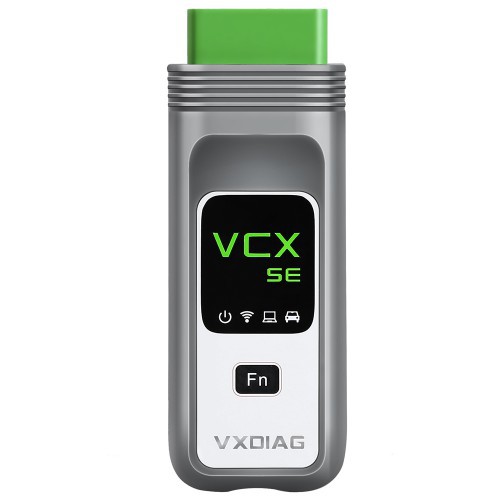

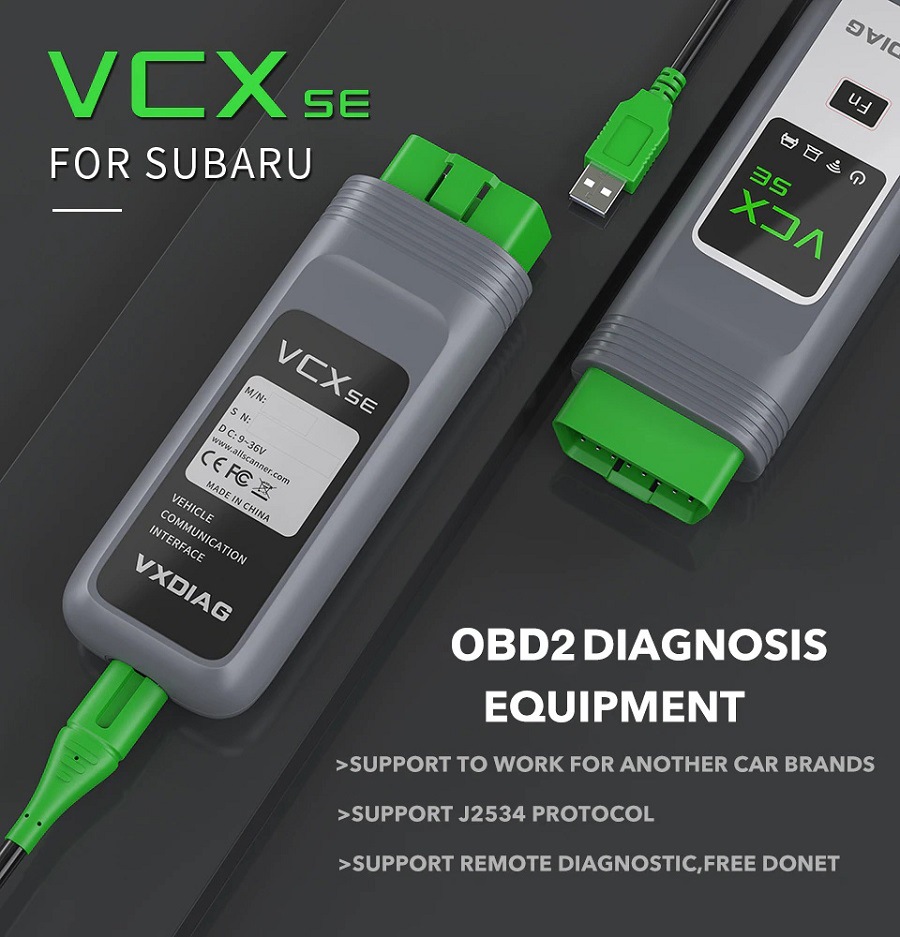

VXDIAG VCX SE for Subaru OBD2 Diagnostic Tool with 2022.1 SSM3 SSM4 Software Support WIFI

ID NO.: CTP226

Product Description

1. VXDIAG VCX SE for Subaru OBD2 Diagnostic Tool
2. Software version: 2022.1
3. SSM3 supports vehicle 2005- 2020 year, ssm4 support vehicles 2016 onwards
4. Offer Free DONET
5. Support to add license for other brands.

VXDIAG VCX SE for Subaru OBD2 Diagnostic Tool with 2022.1 SSM3 SSM4 Software Support WIFI

Highlights for VCX SE Subaru:
1. Software Version: 2022.1
2. Support Multi-languages: English, Japanese, French, German, Spanish, Italian, Russian, Chinese, Polish. (Run SSM3, go to Tool tab- Option – Language, select language desired, and save.)
3. Support Type-C USB and WIFI connection
4. Vehicle coverage: 2005-2020
5. Available Systems: Recommend Windows 7/ Windows 10 64bits Professional Edition.
6. Able to add license for more brands
7. Support original functions with online account
Free download V2020.07 SSM3 SSM4 Software
VCX SE Subaru SSM Software Available Functions:
1. All System Diagnosis. Selecting this item displays on a single screen the fault detect status of all control system control modules for which SSMΙΙΙ diagnosis is supported, and memorized diagnostic codes.
2. Each System Check. Selecting this item makes it possible to select a particular system from among the control systems forwhich SSMΙΙΙ diagnosis is supported, and perform fault diagnosis. This item can be used to view input/output data of the system control modules that perform fault diagnosis, memorized diagnostic codes, and other data on the PC display. This menu item is also used after repair work is complete to delete diagnostic codes, to configure control module settings, etc.
3. Saved Data Display. This item can be used to save various data sampled during fault diagnosis operations, and to load data for viewing after work is complete.
4. Immobilizer. This item performs immobilizer registration.
5. Reprogram. This item performs reprogramming of the control module.
6. Read CF application measurement data. This item performs reading stand alone measurement data saved in a CF card to hard disk of your PC.
7. Convert/Save measurement data on driving recorder. Loads data sampled on the driving recorder to the PC from the CF card, and converts and saves that data.
8. Oscilloscope. After attaching the optional pulse/analog cartridge to SDI, connect the pulse/analog box to the SDI and using pulse/analog probe to perform analog sampling. But we do not provide pulse/analog cartridge.
9. Program Subaru smart key (Require online account)

VCX SE is able to access all systems for diagnosing, repairing, programming, instance: read and clear code, read dynamic data stream, action test, activate components, replace and program module, retrofit and modify the car's configuration, replace and upgrade ECU, do personalized settings, etc.
Support Remote Diagnostic function:

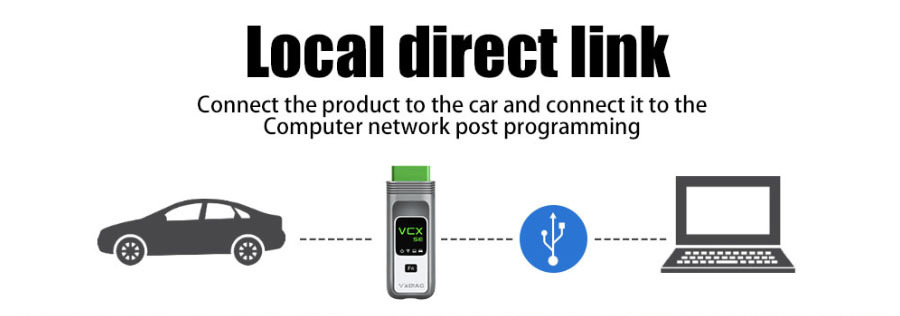

Free Donet License--Insert the device to your car and you do the diagnostic in your home or let the engineer to help you do the diagnostic in another place.

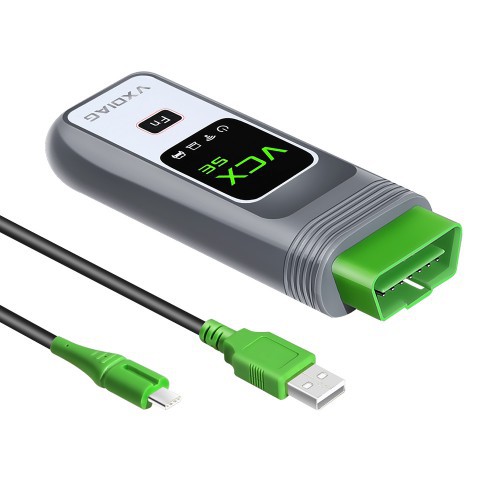

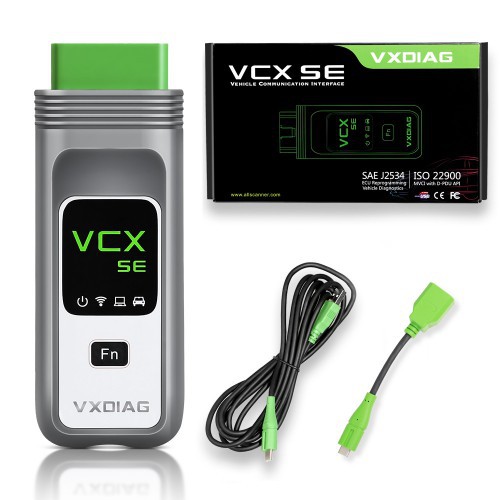

Package List:
1pc x VXDIAG VCX SE Subaru
1pc x USB Cable
1pc x Carry Case

产品中文介绍（英译中-谷歌翻译）

VXDIAG VCX SE for Subaru OBD2 Diagnostic Tool with 2022.1 SSM3 SSM4 软件支持 WIFI

ID NO.:

产品描述

1. 斯巴鲁 OBD2 诊断工具的 VXDIAG VCX SE
2. 软件版本：2022.1
3. SSM3支持车辆2005-2020年，ssm4支持车辆2016年起
4. 提供免费的 DONET
5. 支持为其他品牌添加许可证。

VXDIAG VCX SE for Subaru OBD2 Diagnostic Tool with 2022.1 SSM3 SSM4 软件支持 WIFI

VCX SE Subaru 亮点：
1. 软件版本：2022.1
2. 支持多国语言：英语、日语、法语、德语、西班牙语、意大利语、俄语、中文、波兰语。 （运行SSM3  ，进入 Tool tab- Option  -  Language，选择需要的语言，保存。）
3.支持Type-C USB和WIFI连接
4.车辆覆盖范围：2005-2020
5.可用系统：推荐Windows 7/Windows 10 64 位专业版。
6. 可添加更多品牌的license
7. 在线账号支持原有功能
免费下载V2020.07 SSM3 SSM4软件
VCX SE Subaru SSM软件可用功能：
1.所有系统诊断。选择此项在单个屏幕上显示支持SSMIIIII诊断的所有控制系统控制模块的故障检测状态，以及存储的诊断代码。
2. 各系统检查。选择此项目可以从支持 SSMII 诊断的控制系统中选择特定系统，并执行故障诊断。此项可用于在 PC 显示器上查看执行故障诊断的系统控制模块的输入/输出数据、记忆的诊断代码以及其他数据。该菜单项在维修工作完成后也用于删除诊断代码、配置控制模块设置等。
3.保存的数据显示。此项可用于保存故障诊断操作中采集的各种数据，工作完成后可加载数据进行查看。
4.防盗器。此项目执行防盗器注册。
5. 重新编程。该项目执行控制模块的重新编程。
6. 读取 CF 应用测量数据。此项目执行将保存在 CF 卡中的独立测量数据读取到 PC 的硬盘中。
7.转换/保存行车记录仪上的测量数据。将在行车记录仪上采集的数据从CF卡读入PC，转换并保存该数据。
8.示波器。将可选的脉冲/模拟盒连接到 SDI 后，将脉冲/模拟盒连接到 SDI，并使用脉冲/模拟探头进行模拟采样。但我们不提供脉冲/模拟墨盒。
9. Program Subaru smart key (Require online account)

VCX SE 可以访问所有系统进行诊断、维修、编程，例如：读取和清除代码、读取动态数据流、动作测试、激活组件、更换和编程模块、改装并修改汽车的配置，更换和升级ECU，进行个性化设置等
支持远程诊断功能：
免费Donet License--将设备插入您的汽车，您可以在家中进行诊断或让工程师帮助您进行诊断在另一个地方诊断。

包装清单：
1 件x VXDIAG VCX SE 斯巴鲁1 件
x USB 数据线1 件 x 手提箱
