| İdxal olunub: Bəli/Xeyr | No |
| Emal və fərdiləşdirmə | Bəli |
| Məhsul kodu | X t y 2 0 9 6 7 |
| Növ | Avtomobil nasazlıq diaqnostika aləti |
| Enerji təchizatı gərginliyi | 12 |
| İşləmə temperaturu | 56 |
| Brend | Neytral |
| Model | Orange5 v1.42 v1.45 |
| Əsas aşağı axın platformaları | Ebay |
| Əsas aşağı axın platformaları | Amazon |
| Əsas aşağı axın platformaları | Wish |
| Əsas aşağı axın platformaları | AliExpress |
| Əsas aşağı axın platformaları | Müstəqil mağaza |
| Əsas aşağı axın platformaları | Lazada |
| Sərhədlərarası ixrac üçün xüsusi təchizat mənbəyidirmi? | Bəli |
| Spesifikasiyalar | V1.42 tam dəst |
| Spesifikasiyalar | V1.42 əsas versiya |
| Spesifikasiyalar | Super pro v1.42 tam dəst |
| Spesifikasiyalar | Super pro v1.42 əsas versiya |
| Spesifikasiyalar | V1.45 tam dəst |
| Spesifikasiyalar | V1.45 əsas versiya |
| Spesifikasiyalar | Super pro v1.45 tam dəst |
| Spesifikasiyalar | Super pro v1.45 əsas versiya |
V1.45 Orange5 Programmer With Full Adapters Add all Programmer OEM Authorization Orange5 V1.45 OBD2 Auto Programmer
The latest version, V1.45, is compatible with all the features of previous versions of the same series V1.38 and V1.42.

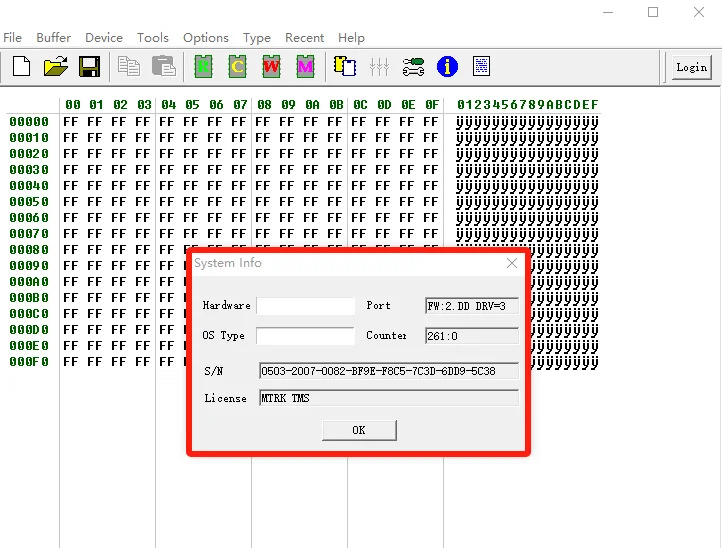

S/N: 0503-2007-0082-BF9E-F8C5-7C3D-6DD9-5C38
License: MTRK TMS
Feature:
Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.
Orange5 Technical Info:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.

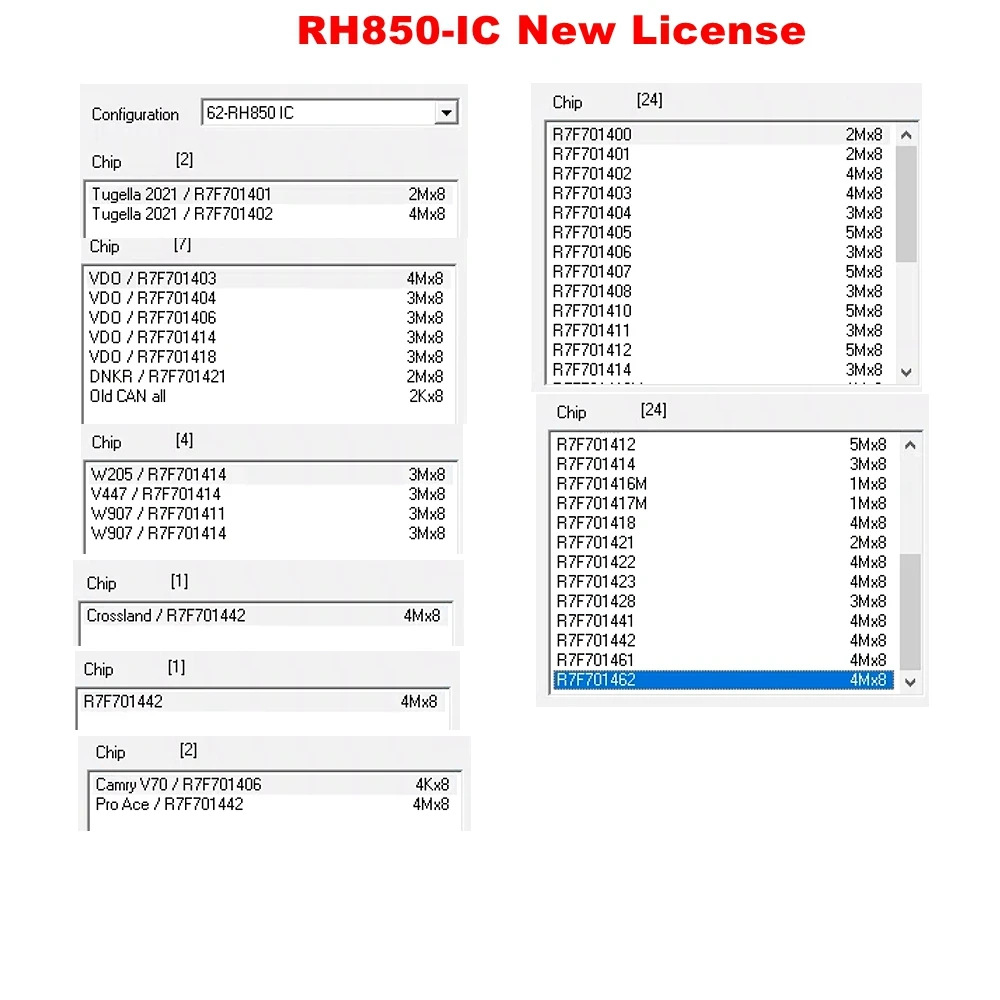

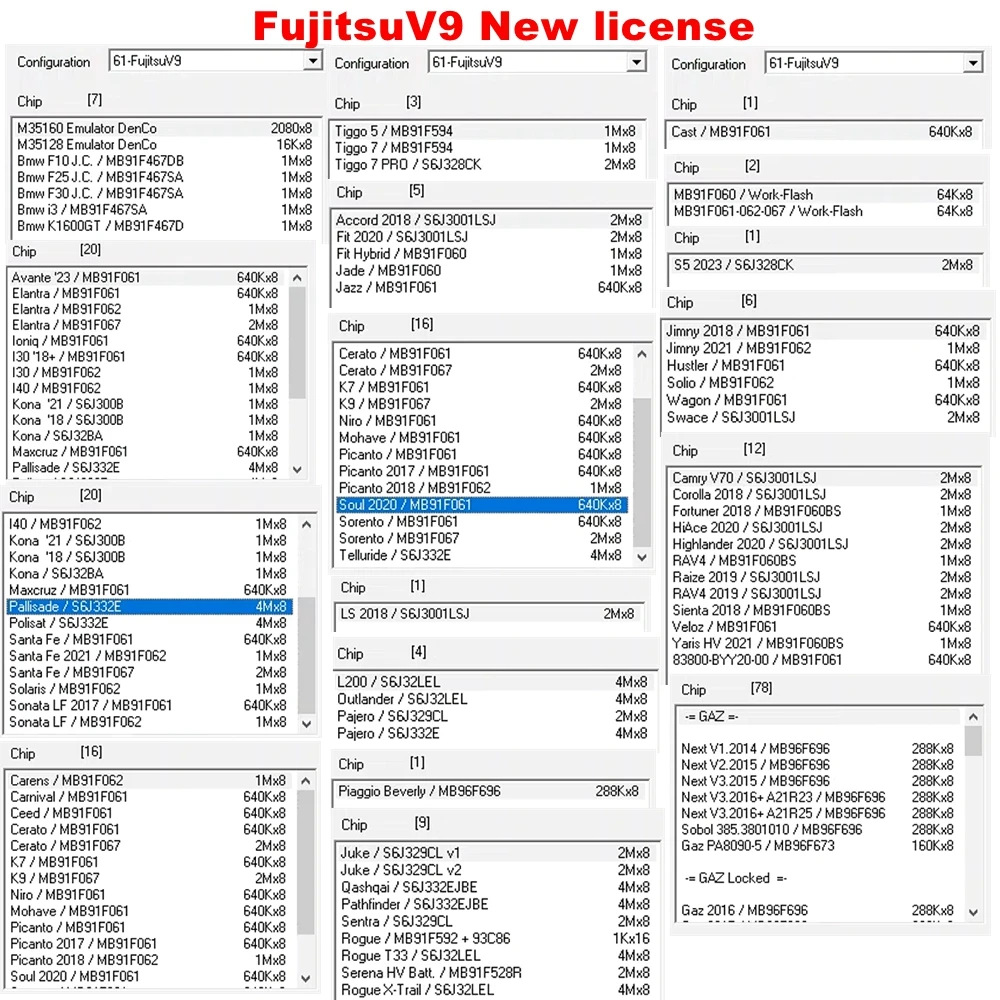

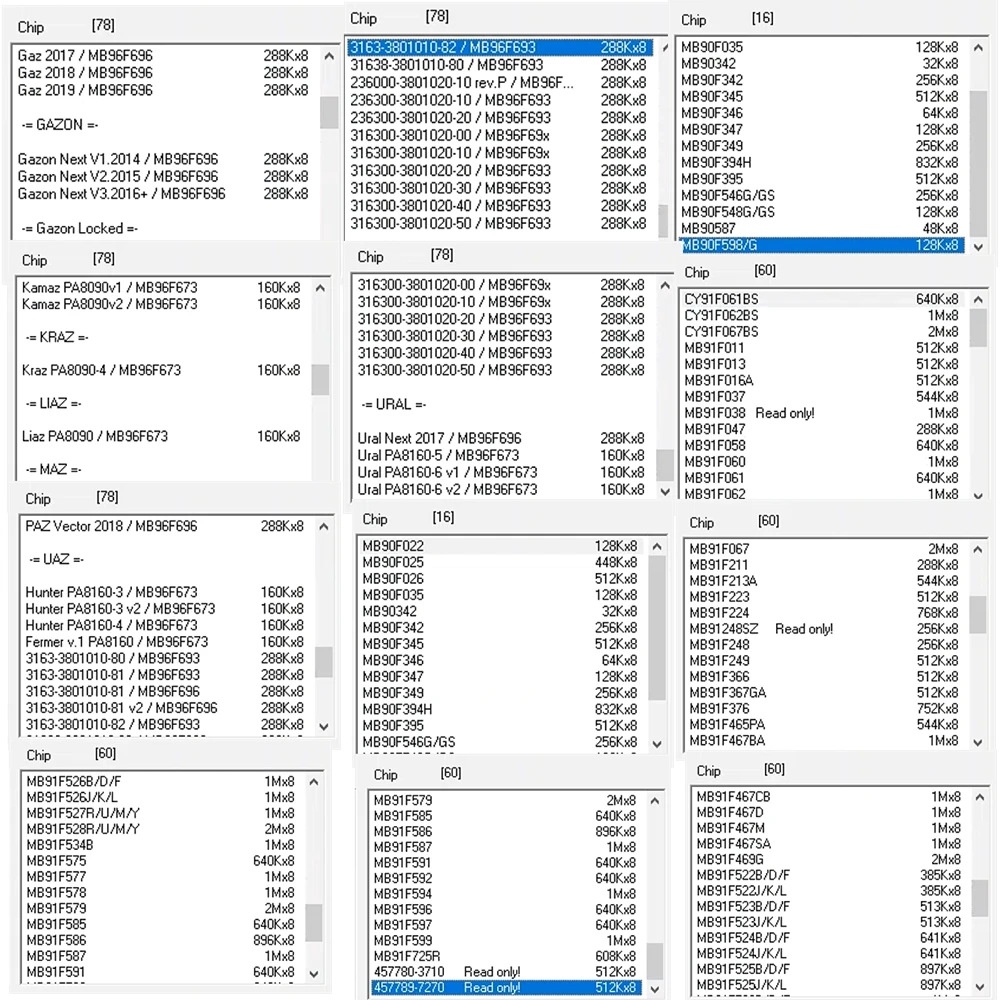

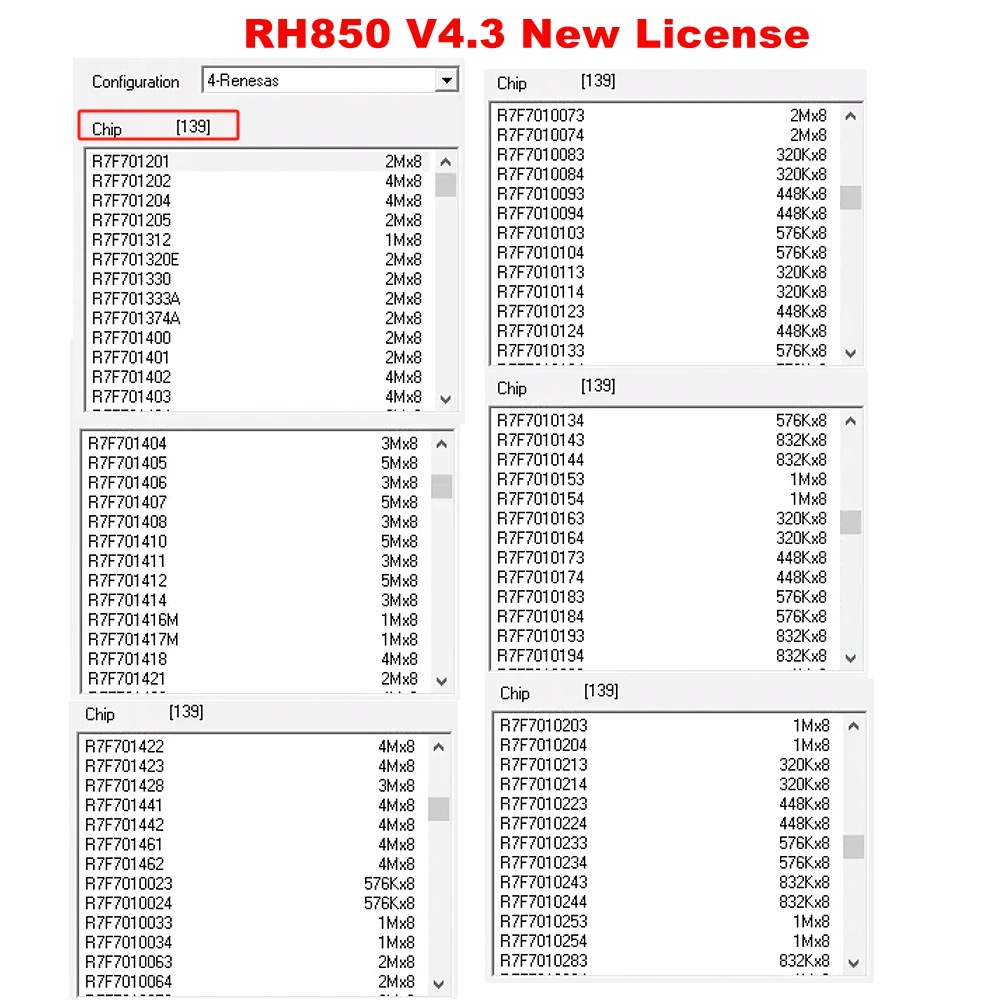

Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
NOTICE
Orange5 ONLY connect via USB power supply 5V voltage. It can not connect external power supply via 12V ,otherwise it will burn, always shows corrupt and kill the board. And Please do not update .
