| Emal və fərdiləşdirmə | Bəli |
| Brend | Digər |
| Model | CWZ-101 |
| Növ | Elektron taxometr |
| Ölçmə diapazonu | Ölçmə diapazonu: 600 rpm (0+200, 0+250, 0 torpaq 300, 0 torpaq 400, 0 torpaq 500 və s. ola bilər) |
| Ölçmə dəqiqliyi | -- |
| Təsvir ölçüsü | -- |
| Ölçü | -- |
| Enerji təchizatı | Təchizat gərginliyi: DC24V soil 20% (or AC220V) |
| Məhsul nömrəsi | -- |
| Sərhədlərarası ixrac təchizatı olub-olmaması | No |
| İş mühiti | Ətraf mühitin temperaturu -20C-+60C, nisbi temperatur ≤98% |
CWZ-101型艉轴转速方向测量装置
2.主要技术指标
(1)电源电压: DC24V土20% (或AC220V)
(2)测量范围: 0士600转/分(0+200, 0+250, 0土300, 0土400, 0土500等可供选择)
(3)输出电压:0土10V
(4)工作环境:环境温度-20C-+60C，相对温度≤98%

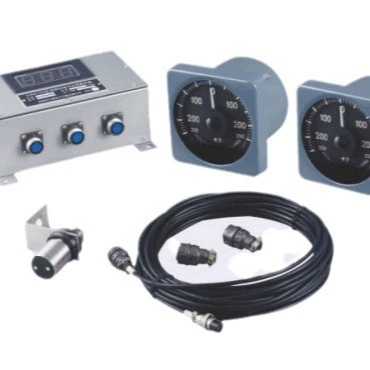

CWZ-101 stern shaft speed direction measuring device
2. Main technical indicators
(1)Power supply voltage: DC24V±20% (or AC220V)
(2) Measuring range: 0±600 rpm (0+200, 0+250, 0±300, 0±400, 0±500, etc. are available)
(3)Output voltage: 0±10V
(4) Working environment: ambient temperature -20C-+60C, relative temperature ≤98%
1.产品用途与特点
CWZ- 101型艉轴转速方向测量装置，适用于船舶艉轴(中间轴)转速测量和倒顺转检测，可作多路指示。本装置采用微电脑控制，检测能力强，可靠性好。采用双色大屏幕数码管显示，读数正确、直观、稳定，前进顺转为绿色，后退倒转为红色，停车为橘黄。本装置为非接触磁感应测量,
灵敏度高，感应距离大，小磁钢感应测速,省去了笨重的测速齿盘，安装方便。可外接双向指针转速表2-10只。配套转速表型号:45C3-V、ZZ3- -4、F96-DC、ZZ3-1等。还可供VDR信号。
1. Usage and Characteristics CWZ-101 Stern Shaft Speed Direction Measuring Device is used to measure the speed and reverse
direction of the ship's stern shaft (middle shaft), which can be used for multi-channel indication. The device adopts micro-electric control, has strong detection ability and good reliability. Using double large screen digital tube display, the degree is correct, intuitive, stable, forward turn green, backward turn red, when parking turn orange. The device is non-contact magnetic induction measurement, high sensitivity, large induction distance, small magnet induction speed measurement, eliminating heavy speed
measuring gear plate, easy installation. Two to ten tachometers with two-way pointers can be attached.
Matching tachometer models: 45C3-V, ZZ3-4, F96-DC, ZZ3-1, etc. It can also provide VDR signal
