Langren XTOOL D7S avtomobil diaqnostika aləti tam sistem OBD2 15 dil dəstəyi

产品图片展示

产品英文介绍（Product introduction in English）

2023 XTOOL D7S Diagnostic Tool Support DoIP & CAN FD, ECU Coding Bidirectional Scanner Key Programming, OE Full Diagnosis

ID NO.: CTP280

Product Description

1. XTOOL D7S Upgraded Ver. of D7 with New UI, and Support DoIP & CAN FD
2. Key Programming: Work with KC100/KC501
3. Can work with XTOOL XV100
4. Built-in 5,000mAh battery larger than XTOOL D7
5. 3 Years Free Update

XTOOL D7S Diagnostic Tool Support DoIP & CAN FD, ECU Coding Bidirectional Scanner Key Programming, OE Full Diagnosis, Upgraded Ver. of D7 New UI

XTOOL D7S Highlights:
1. Upgraded Ver. of D7 with New UI
2. Support DoIP & CAN FD, D7 support only CAN FD
3. Key Programming: Work with KC100/KC501. Unlike D7, XTOOL D7S Can work with KC100/KC501 to add keys for Mercedes, for Toyota etc. Read PIN codes, program new keys/fobs, perform remote learning, disabIe the lost keys etc.
4. Built-in 5,000mAh battery larger than XTOOL D7 which includes 4,000mAh battery. long-time Working Battery.
5. Can work with XTOOL XV100: Help you better check the vehicle by viewing details via the endoscope.
6. AutoVin & Auto Scan+ Active Test (Bi-Directional Control)
7. ECU CODING & KEY PROGRAMMING, perform ECU Coding for VW, for Audi, for Skoda.
8. 36+ MAINTENANCE SERVICES
9. 8-IN-I Graphing: Graph up to 8 live data streams into 1 chart or display up to 8 individual graphs on one screen.
10. Powerful quad-core 1.6GHz processor with faster 2GB and reliable 64GB On-board memory, Dual-band wifi
11. 3 Years Free Update.
12. Support 15 Languages: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese.
Upgraded of XTOOL D7: New UI, Larger Storage, Larger Battery, Features Added, Kickstand Added, and more!!!

OE-Level Full Systems Diagnostics: D7S auto scanner with complete capabilities for read & clean codes, live data, active test, ECU information, adaptation, matching, etc. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models.
36+ Advanced Maintenance Services: Oil Reset, ABS Bleeding, Injector coding, Fuel Trim Learn, Transmisson Reset, Language Change, A/F Settings, Stop/Start Reset, SAS Reset, TPMS Reset, etc.
ECU Coding: For customize your car, unfold the hidden features, or disable the annoying functions(turn off the back up beep, turn the seat belt buzzer off); Re-identify the adaptive data for certain components after repairs or replacements Works For VW/AUDI/SKODA
Key Programming Function(Every Workshop Needed): Disable a lost vehicle key and program the replacement key fob for specific vehicles.Note: Check the key type with us before buying.
Enhanced Bi-directional Control(Active Test): Perform various active tests to check the integrity of systems or components and the operating conditions of various car systems or sub-systems without using the vehicle controls to test ABS motor, window, door, solenoids, relay, switch, valves, sunroof, headlamps and etc to check its functionality.
8-In-1 Graphing,More Comprehensive Live Data: The original 4-in-1 graph is changed into 8-in-1 graph,Allow you to customize specific PID, and merge graphs for up to 8 data PIDs combined at one time in one graph.
D7S now support for the can fd and Doip
PDF Diagnostic Report & Remote Suppport: D7S auto diagnostic scan tool enables diagnostic tech or mechanics to generate history diagnostic reports for sharing with customers by printing it out or sending it to customers via PDF.If you encounter problems and are not able to solve them, you could come to us to reserve remote assistance from XTOOL TECH TEAM.
Upgraded Android 10.0 OS, 7-inch LED capacitive screen with 1024×600 resolution.
Wider Coverage for More Vehicles (still expanding in 2023): Add more models in 2021 and 2022, expand to 140+Brands, and 10000+Models for EU, ASIA, US domestic cars to perform OE level diagnostics，Active test... XTOOL technical team is still adding new models.
3-Year Software Free Update & Lifetime Perfessional Technical Service: Most scanner in the market within same price range comes only 1 year update, XTOOL D7S scanner comes 3 years free software update. You can added car models coverage, improve performance and capabilities within its fold for 3 years. You can still use the scanner normally even when the free updates period expires.

OE-LEVEL Full System Diagnostic Scanner Tool
XTOOL D7S is an full system diagnostic scanner as it can scan all available systems of car to read and clear codes, view live data stream of various sensors and graph it, retrieves freeze frame, perform active tests to check the work status of modules, providing you with a Dealership-Level only diagnosis, getting the accurate and in-depth diagnosis across all automotive systems.
Include: ABS System, Engine System, SAS System, TPMS System, IMMO System, Battery System, Oil Service System, SRS System, DPF System, Air Conditioning System, Transmission System, etc...

Active Test / Bi-directional Scan Tool
XTOOL D7S is a bi-directional scan tool, allow you to request information or command a module to perform specific tests and functions, while observing the resulting data to troubleshoot and fast repair. Bi-directional Control (also referred to as Active Tests/Component Tests) function can save the mechanic/workshop loads of time and help them get through more jobs every day.
D7S can perfrom EVAP Test, Fuel Trim Reset, Fuel Composition Reset, Injector Buzz Test, Fuel Pump, Window/Mirror/Door Lock Test, Pump and Value Tests, etc.


Advanced ECU Coding
✔️ Advanced ECU Coding:
ECU coding capability for VW/AUDI/SKODA ONLY which performs online Coding, Component Matching, Adaptive Data Reset, Flash Hidden Functions, etc to optimize vehicle performance and customize car settings.
✔️ Flash Hidden Functions(ECU Configuration):
for BMW/VW/AUDI/SKODA/TOYOTA/LEXUS/SCION/MAZDA/FORD/LINCOLN, help refresh hidden functions to reprogram adaptive data for certain components after making repairs or replacements. You can activate the higher-level car functions and disable any annoying features. Modify personalization/customize some extra options such as disabled the seat belt buzzer, wind the windows down with the remote fob, etc.

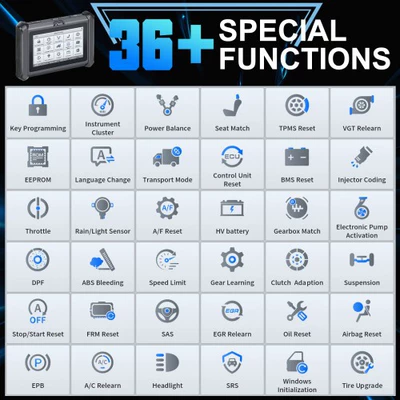

36+ Hot Service Functions
Oil/Service/Maintenance Light Reset: Close the oil service light and reset service mileage & service interval after replacing the engine oil.
EPB Reset: Reset the new electronic parking brake for braking wheels safely again.
Throttle Relearn: Allows to reset the throttle actuators to accurately regulate throttle (or idle engine) operations, helps keep your idling and acceleration smooth.
TPMS Reset: Relearn TPMS sensors so that new sensors can be recognized by ECU.
ABS Bleeding: Get a firm brake pad after air exhaustion.
Immobilizer: Allows to disable a lost vehicle key to protect the vehicle from being stolen and add the new key.
DPF Regeneration: Allows to clear PM from the DPF filter through oxidation or combustion to stabilize the filter performance.
Injector Coding: Code the new injectors after replacement for accurate fuel injecting control and improve fuel efficiency.
SAS Calibration: Erase the fault steering angle sensor memories and make calibration for the Steering Angle Sensor.
BMS Reset: Register the newly replaced car battery into the ECU.
More: Window Initialization, Gearbox Match, Instrument Cluster, Headlight, Air Suspension, Gear Learning, EEPROM Adapter, Airbag Repair, Cylinder, Seat Configurations, Electronic Pump Activation, Disabled Transportation, Performance Tire Upgrade, A/F Setting, Stop/Start Reset, Language Change and Reset Control Unit, Rain/Light Sensor, A/C Relearn, HV Battery, VGT Relearn, FRM Reset, EGR Relearn, SRS, Clutch Adaptation, Speed Limit etc…
IMMO Key Programming Functions:
Disable a lost vehicle key and program the replacement key fob for specific vehicles.Note: Check the key type with us before buying.
Auto VIN SCAN for Quick Diagnosis:
D7S diagnostic tool will start auto-detected process and you can scan your car’s detailed version information with one click. You can always navigate your vehicle manually to perform diagnostics if the AuoVIN do not work in some cases.
8 IN 1 Live Data Graphing Functions:
D7S can diagnostic all trouble codes and live data stream of full electrical control units and view Freeze Frame.Display live data stream in text or graphs like cylinder misfires data, transmission fluid/Oil temperature, fuel trim, ATF temperature, cylinder balance rates, engine rpm, O2 sensors, mass air flow sensor data, fuel pressure, actual fuel temperature vs desired fuel temperature and etc;
-- Export Live Data as CSV: Exporting live data as CSV file to track vehicle performance over time.
-- 8-In-1 Graphing: Allow you to customize specific PID, and merge graphs for up to 8 data PIDs combined at one time in one graph.
-- Graph up to 8 sensors individually on the same screen.
One-click Online Update:
Just connect to the network, you can enjoy updates anytime and anywhere throughout the year, download the latest models, update the latest functions, and avoid the complex update mode of USB connection!
Extensive Vehicle Coverage
XTOOL D7 car diagnostic tablet works on 80+ Makes, 140+ Brands, and 10,000+ Models, US domestic and abroad up to 2021, 2020 to perform OE level diagnostics…… XTOOL technical team is still adding new models
Europe Cars:
for DEMO, for VW, for MINI, for LANDROVER, for SEAT, for FERRARI, for FORD, for OPEL, for ALFA, for ROMEO, for VOLVO, for ABARTH, for SMART, for BMW, for FIAT, for LANCIA, for RENAULT, for ASTONMARTIN, for GAZ, for MASERATI, for MEREDES, for UAZ, for SKODA, for CITROEN, for DACIA, for AUDI, for JAGUAR, for PORSCHE, for PEUGEOT
America Cars:
for DEMO, for GM, for FORD, for CADILLAC, for CHEVROLET, for GMC, for HUMMER, for JEEP, for SATURN, for PONTIAC, for LINCOLN, for DODGE, for CHRYSLER, for BUICK
Asia Cars:
for Demo, for TOYOTA -LEXUS, for ISUZU, for MAZDA, for KIA, for INFINITI, for ACURA, for NISSAN ,for RENAILTSAM, for HYUNDAICY, for HYUNDAI, for HONDA, for SUBARU, for SUZUKI, for MITSUBISHI, for SSANGYONG
Australia Cars:
For Demo, for Ford
China Cars:
for DEMO, fro JAC, for CHERY, for GEELY, for GREAT WALL, for BYD, for LIFAN
Xtool D7S Parameter
Operating System：Android 10.0 O.S.
Display：7.0 inch touch screen with 1024 X 600 resolution
Power and Battery：5000mAh, 3.7V
Memory：2GB+64GB
Power Consumption：8W
Power Voltage：5V
Processor：Quad-core 1.5GHz Processor
Connectivity：Micro USB+WIFI(2.4Ghz & 5Ghz)
Dimension (L*W*H)：218*150*29mm
Sensors：Gravity sensor, light sensor
Packing List
D7S Smart Diagnostic Tablet * 1
Quick Start Guide * 1
Packing List * 1
Tool Kit * 1
Carton * 1
DB15 to OBD2-16 Main Cable * 1
Power Charger * 1
USB 3.0 Data Cable * 1
Charger US * 1
Charger UE * 1
Charger UK * 1

产品中文介绍（英译中-谷歌翻译）

2023 XTOOL D7S诊断工具支持DoIP & CAN FD，ECU编码双向扫描仪按键编程，OE全面诊断

ID NO.: CTP280

产品描述

1. XTOOL D7S升级版 D7全新UI，支持DoIP & CAN FD
2. 按键编程：与 KC100/KC501 配合使用
3. 可与XTOOL XV100配合使用
4. 内置比XTOOL D7更大的5,000mAh电池
5. 3年免费更新

XTOOL D7S诊断工具支持DoIP & CAN FD，ECU编码双向扫描仪按键编程，OE全面诊断，升级版。D7新UI

XTOOL D7S亮点：
1.升级版本。D7 的新 UI
2. 支持 DoIP 和 CAN FD，D7 仅支持 CAN FD
3. 按键编程：与 KC100/KC501 配合使用。与 D7 不同，XTOOL D7S 可以与 KC100/KC501 配合使用，为梅赛德斯、丰田等添加钥匙。读取 PIN 码、编程新钥匙/钥匙扣、执行远程学习、禁用丢失的钥匙等。 4.
内置 5,000mAh 电池，容量更大比 XTOOL D7 配备 4,000mAh 电池。长时间工作的电池。
5.可与XTOOL XV100配合使用：通过内窥镜查看详细信息，帮助您更好地检查车辆。
6. AutoVin & Auto Scan+主动测试（双向控制）
7. ECU编码和钥匙编程，对大众、奥迪、斯柯达进行ECU编码。
8. 36+ 维护服务
9. 8-IN-I 绘图：将最多 8 个实时数据流绘制到 1 个图表中，或在一个屏幕上显示最多 8 个单独的图表。
10. 强大的四核 1.6GHz 处理器，具有更快的 2GB 和可靠的 64GB 板载内存，双频 wifi
11. 3 年免费更新。
12.支持15种语言：英语、西班牙语、德语、法语、意大利语、芬兰语、阿拉伯语、日语、韩语、波兰语、葡萄牙语、越南语、俄语、简体中文和繁体中文。
XTOOL D7 升级： 新的 UI、更大的存储空间、更大的电池、添加的功能、添加的支架等等！

OE 级完整系统诊断： D7S 自动扫描仪具有读取和清理代码、实时数据、主动测试、ECU 信息、适配、匹配等完整功能。适用于 80 多种美国、亚洲和欧洲品牌和型号的强大 OE 级诊断。
36+ 项高级维护服务： 油重置、ABS 放气、喷油器编码、燃油调整学习、变速箱重置、语言更改、A/F 设置、停止/启动重置、SAS 重置、TPMS 重置等。
ECU 编码： 用于定制您的汽车，展开隐藏功能，或禁用烦人的功能（关闭倒车提示音、关闭安全带蜂鸣器）；维修或更换后重新识别某些部件的自适应数据适用于大众/奥迪/斯柯达
钥匙编程功能（每个车间都需要）： 禁用丢失的车辆钥匙并对特定车辆的替换钥匙扣进行编程。注意：购买前请与我们核实钥匙类型。
增强型双向控制（主动测试）： 执行各种主动测试，检查系统或组件的完整性以及各种汽车系统或子系统的运行状况，而无需使用车辆控制来测试 ABS 电机、车窗、车门、电磁阀、继电器、开关、阀门、天窗、头灯等检查其功能。
八合一图表，更全面的实时数据： 原来的四合一图表改为八合一图表，允许您自定义特定的PID，并且可以一次合并最多8个数据PID的图表在一张图中。
D7S 现在支持 can fd 和 Doip
PDF诊断报告和远程支持：  D7S自动诊断扫描工具使诊断技术或机械师能够生成历史诊断报告，通过打印或通过PDF发送给客户来与客户共享。如果您遇到问题并且无法解决，您可以来我们这里预约XTOOL技术团队的远程协助。
升级Android 10.0操作系统，7英寸LED电容屏，分辨率1024×600。
更广泛覆盖更多车辆（2023年仍在扩展）：  2021年和2022年增加更多车型，扩展至140+品牌，10000+车型对欧盟、亚洲、美国国产汽车进行OE级诊断，主动测试... XTOOL技术团队仍在添加新型号。
三年软件免费更新和终身专业技术服务： 市场上相同价格范围内的大多数扫描仪仅提供 1 年更新，XTOOL D7S 扫描仪提供 3 年免费软件更新。您可以在 3 年内增加车型覆盖范围、提高性能和功能。即使免费更新期限到期，您仍然可以正常使用扫描仪。

OE 级全系统诊断扫描仪工具
XTOOL D7S 是一款全系统诊断扫描仪，因为它可以扫描汽车的所有可用系统以读取和清除代码、查看各种传感器的实时数据流并绘制图表、检索冻结帧、执行主动测试检查模块工作状态，为您提供经销商级诊断，对汽车各系统进行准确、深入的诊断。
包括： ABS系统、发动机系统、SAS系统、TPMS系统、IMMO系统、电池系统、机油服务系统、SRS系统、DPF系统、空调系统、变速箱系统等...

主动测试/双向扫描工具
XTOOL D7S是双向扫描工具，允许您请求信息或命令模块执行特定的测试和功能，同时观察结果数据以进行故障排除和快速修复。双向控制（也称为主动测试/组件测试）功能可以节省机械师/车间的时间负荷，并帮助他们每天完成更多的工作。
D7S 可以执行 EVAP 测试、燃油调整重置、燃油成分重置、喷油器嗡嗡声测试、燃油泵、车窗/后视镜/门锁测试、泵和值测试等。

先进的 ECU 编码
✔️ 高级 ECU 编码：
仅适用于 VW/AUDI/SKODA 的 ECU 编码功能，可执行在线编码、组件匹配、自适应数据重置、闪存隐藏功能等，以优化车辆性能和自定义汽车设置。
✔️ 闪存隐藏功能（ECU配置）：
适用于BMW/VW/AUDI/SKODA/TOYOTA/LEXUS/SCION/MAZDA/FORD/LINCOLN，在维修或更换后帮助刷新隐藏功能以重新编程某些部件的自适应数据。您可以激活更高级别的汽车功能并禁用任何烦人的功能。修改个性化设置/定制一些额外选项，例如禁用安全带蜂鸣器、使用遥控钥匙摇下车窗等。

36+ 热维修功能
机油/维修/维护灯重置： 更换机油后关闭机油保养灯并重置保养里程和保养间隔。
EPB 重置： 重置新的电子驻车制动器，以便再次安全制动车轮。
油门重新学习： 允许重置油门执行器以准确调节油门（或怠速发动机）操作，有助于保持怠速和加速平稳。
TPMS重置： 重新学习TPMS传感器，以便ECU可以识别新传感器。
ABS 排气： 排气后更换牢固的刹车片。
防盗器： 允许禁用丢失的车钥匙以防止车辆被盗并添加新钥匙。
DPF 再生： 通过氧化或燃烧清除 DPF 过滤器中的 PM，以稳定过滤器性能。
喷油器编码： 更换后对新喷油器进行编码，以实现精确的燃油喷射控制并提高燃油效率。
SAS标定： 清除故障转向角传感器记忆并对转向角传感器进行标定。
BMS Reset： 将新更换的汽车电池注册到ECU中。
更多的： 车窗初始化、变速箱匹配、组合仪表、头灯、空气悬架、档位学习、EEPROM 适配器、安全气囊修复、气缸、座椅配置、电子泵激活、残疾人运输、性能轮胎升级、A/F 设置、停止/启动重置、语言更改和重置控制单元、雨/光传感器、A/C 重新学习、HV 电池、VGT 重新学习、FRM 重置、EGR 重新学习、SRS、离合器适应、速度限制等……
防盗钥匙编程功能：
禁用丢失的车辆钥匙并对钥匙进行编程适用于特定车辆的替换钥匙扣。注意：购买前请与我们核实钥匙类型。
自动 VIN 扫描用于快速诊断：
D7S诊断工具将启动自动检测过程，您可以一键扫描您的汽车的详细版本信息。如果 AuoVIN 在某些情况下不起作用，您始终可以手动导航车辆以执行诊断。
8 合 1 实时数据绘图功能：
D7S 可以诊断所有故障代码和完整电气控制单元的实时数据流并查看冻结帧。以文本或图形形式显示实时数据流，如气缸失火数据、变速箱油/油温度、燃油调整、 ATF温度、气缸平衡率、发动机转速、O2传感器、质量空气流量传感器数据、燃油压力、实际燃油温度与期望燃油温度等；
-- 将实时数据导出为 CSV：将实时数据导出为 CSV 文件，以跟踪车辆随时间的表现。
-- 8 合 1 图形：允许您自定义特定 PID，并将最多 8 个数据 PID 合并到一张图形中。
-- 在同一屏幕上分别绘制最多 8 个传感器的图表。
一键在线更新：
只需连接网络，一年四季随时随地即可享受更新，下载最新型号，更新最新功能，免去USB连接的复杂更新模式！
广泛的车辆覆盖范围
XTOOL D7 汽车诊断平板电脑适用于 80+ 品牌、140+ 品牌、10,000+ 车型，美国国内和国外直至 2021、2020 年执行 OE 级诊断…… XTOOL 技术团队仍在添加新车型欧洲汽车
：
适用于DEMO、适用于大众、适用于MINI、适用于LANDROVER、适用于西雅特、适用于法拉利、适用于福特、适用于欧宝、适用于阿尔法、适用于ROMEO、适用于沃尔沃、适用于ABARTH、适用于SMART、适用于宝马、适用于菲亚特、适用于蓝旗亚、适用于雷诺, 适用于 ASTONMARTIN、适用于 GAZ、适用于 MASERATI、适用于 MEREDES、适用于 UAZ、适用于 SKODA、适用于 CITROEN、适用于 DACIA、适用于 AUDI、适用于 JAGUAR、适用于 PORSCHE、适用于 PEUGEOT
America 汽车：
适用于 DEMO、适用于通用汽车、适用于福特、适用于凯迪拉克, 适用于雪佛兰、适用于 GMC、适用于悍马、适用于吉普、适用于土星、适用于庞蒂亚克、适用于林肯、适用于道奇、适用于克莱斯勒、适用于别克
亚洲汽车：
适用于演示、适用于丰田-雷克萨斯、适用于五十铃、适用于马自达、适用于起亚、适用于英菲尼迪、适用于 ACURA、适用于日产、适用于 RENAILTSAM、适用于现代、适用于现代、适用于本田、适用于斯巴鲁、适用于铃木、适用于三菱、适用于双龙
澳大利亚汽车：
适用于演示、适用于福特
中国汽车：
DEMO、江淮、奇瑞、吉利、长城、比亚迪、力帆
Xtool D7S 参数
操作系统：Android 10.0 OS
显示屏：7.0 英寸触摸屏，1024 X 600 分辨率
电源和电池：5000mAh, 3.7V
内存：2GB+64GB
功耗：8W
电源电压：5V
处理器：四核 1.5GHz 处理器
连接方式：Micro USB+WIFI(2.4Ghz & 5Ghz)
尺寸（长*宽*高）：218*150*29mm
传感器：重力传感器、光线传感器
装箱清单
D7S 智能诊断平板 * 1
快速入门指南 * 1
装箱清单 * 1
工具包 * 1
纸箱 * 1
DB15 转 OBD2-16 主电缆 * 1
电源充电器 * 1
USB 3.0 数据线 * 1
美国充电器 * 1
UE 充电器 * 1
英国充电器 * 1
