| Mənşə | Çin |
| İdxal edilibmi | No |
| Sifariş № | CTK182 |
| Fərdi emal | No |
| Məhsul № | CTK182 |
| Növ | Avtomobil kompüter detektoru |
| Diaqnostika Sistemi | Avtomobil açarı proqramlaşdırma aləti |
| Enerji təchizatı gərginliyi | 12 |
| İşləmə temperaturu | 0-50 |
| Brend | Autel |
| Model | IM508S |
| Əsas satış platforması | AliExpress |
| Əsas satış platforması | Müstəqil Stansiya |
| Əsas satış platforması | LAZADA |
| Əsas satış platforması | Digər |
| Əsas satış sahəsi | Cənub-Şərqi Asiya |
| Əsas satış sahəsi | Şimali Amerika |
| Əsas satış sahəsi | Şimal-Şərqi Asiya |
| Əsas satış sahəsi | Yaxın Şərq |
| Əsas satış sahəsi | Digər |
| Lisenziyalı şəxsi etiket | No |
| Sərhədlərarası ixrac üçün eksklüziv mənbə olub-olmaması | Bəli |
| Həcm | 51cm*39.5cm*15cm |
| Satış sahəsi | Xarici versiya |
| Çəki | 6kg |
产品图片展示
产品英文介绍（Product introduction in English）
Autel MaxiIM IM508S Key Programming Tool with XP200 Programmer All System Diagnostics 34+ Services Functions
ID NO.: CTK182
Product Description
- Autel MaxiIM IM508S Key Programming Tool with XP200 Programmer All System Diagnostics
- 2 Years Free Update

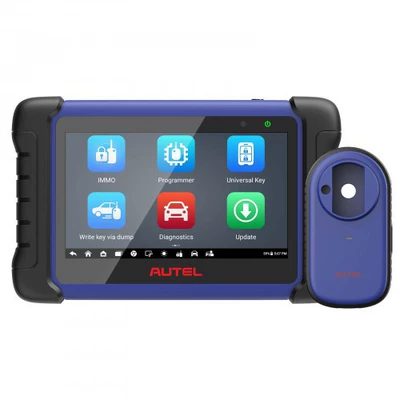

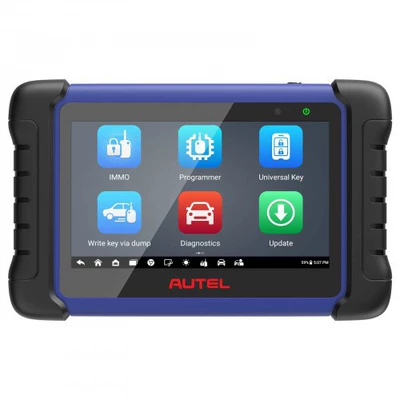

Autel MaxiIM IM508S Key Programming Tool
MaxiIM IM508S is a fast, easy-to-use, and ultraportable immobilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface.
Equipped with the XP200 key programmer, IM508S is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of makes and models on the market, IM508S provides you with superior special functions. IM508S is the perfect solution for shopkeepers and technicians who demand affordable and powerful IMMO and diagnostic services.
Product Highlights:
Total 2 years free update
Powerful RK3566 processor
7"1024x600 LCD capacitive touchscreen
Internal reliable 64GB Memory
Android Operating System for fast boot-up and multitasking
Powerful combination of key programming/all system diagnostics/advanced maintenance services
Smart Mode for guided and automated key learning
Expert Mode for advanced key learning
Read PIN/CS (all key lost) , key generation, key learning, remote learning
IMMO ECU reset/adaptation, refresh/coding
Transponder read/write, EEPROM/MCU read/write
Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
NEW! Support active test and complete special functions
Product Functions:
IMMO & Key Fob Programming for DIYers and Locksmiths
If you want to do something for IMMO systems or car keys, Autel IM508S scanner with XP200 key programmer can help you with the following: read & write to Immobilizer/Engine/EEPROM/MCU; reset/code/backup IMMO ECU; read PIN (Add Key/All Key L~st); key generation/key learning/remote learning, etc. Smart Mode will provide you with guided and automated key learning functions, step by step, save you much trouble! Note: Functions above vary by cars.
The XP200 is specially designed to read Volkswagen vehicle key chip data, clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tool and PC that are both loaded with programmer software, the XP200 can read/write key chip data quickly and accurately.
IMMO:
The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection.
The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc.
Smart Mode–accesses to a function menu where each function is configured as a smart guide system.
Expert Mode–accesses to a function menu where each function is separated from each other.
IMMO & Key Programming :
1.Read PIN/CS (AII key Lost)
2.Key Generation
3.Key Learning/Remote Learning
4.Backup/Restore IMMO Data
5.IMMO ECU Reset/Adaptation,Refresh/Coding
6.BMW FEM/BDC Key Learning and ECU Adaptation
7.VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost and More
Bi-Directional Control/ Active Test
What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars! Key Programming tool IM508S can perform real active tests that can send commands to the vehicle's ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues. Note: NOT universal. Please check compatibility.
OE-level Diagnostic Capability, Same as MK808
Busy for a long time but can't find what's wrong with the car? Take it easy! Autel IM508S scanner, equipped with the same diagnostic capability as MK808, can scan all available car systems on 80+ US, EU and Asian car makes to read & clear DTCs, view live data, freeze frame data, and ECU info, perform active tests and compatible with MV108(not included). With just a few simple clicks, you can quickly locate the issues to win more time and money.
34 Kinds of Maintenance Services, Everything for you.
Oil reset, EPB, TPMS, BMS, brake bleed, aftertreatment, injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Language Change, Headlamp, CHG tire size, TEC learn, ABSSRS, Cylinder, VGT learn, Speed & PTO, Clutch, Trans adaptation, Airbag reset, A/F setting, Automatic Start/Stop, electronic water pump start, EGR, FRM reset, transport mode, HV battery, ACC, A/C, rain/light sensor.
How much did you spend on maintaining your car? In fact, experience tells us that just a small repair service may cost a lot of money. So Autel IM508S scanner are actively reducing the unnecessary expense by integrating 28+ services, meeting many daily service needs, such as Oil/EPB/SAS/DPF/BMS/ABS Bleed/Injector, etc. Note: Functions vary by vehicle, please send VIN to us to check compatibility before order.
Autel MaxiIM IM508S Function List:
All Systems Diagnostics
AutoVIN / AutoScan
Read / Erase Codes
View, Record, Playback Live Data
View Freeze Frame Data
Shop and Data Manager Applications
Key Read / Write
EEPROM / MCU Read / Write
Read PIN / CS (All Key Lost)
Key Generation
Key Learning
Remote Learning
Backup / Restore IMMO Data
IMMO ECU Reset / Adaptation
IMMO ECU Refresh / Coding
BMW FEM / BDC Key Learning and ECU Adaptation
VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Keys Lost, and More
Autel IM508S vs IM508
|
Item |
Autel MaxiIM IM508S |
Autel MaxiIM IM508 |
|
Hardware |
Touch screen tablet & programmer |
Touch screen tablet & programmer |
|
Connection |
Wired |
Wired |
|
Automatic Scan |
√ |
√ |
|
Guided Function |
√ |
√ |
|
IMMO Scan |
√ |
√ |
|
IMMO Function |
Comprehensive |
Comprehensive |
|
Diagnostic Function |
Basic |
Basic |
|
Processor |
Rockchip RK3566 Quad Core, 4x 1.8GHz(A55) |
Rockchip RK3188 Quad core, 4x 1.6GHz(A9) |
|
System |
Android 11 |
Android 4.4.4 |
|
RAM |
4GB |
1GB |
|
ROM |
64GB |
32/64GB |
|
Screen/ Resolution |
7 inches, 1024*600 |
7 inches, 1024*600 |
|
Wi-Fi |
√ |
√ |
|
USB |
USB 2.0: (1 USB HOST Type A, 1 USB mini device) |
USB 2.0: (1 USB HOST Type A, 1 USB mini device) |
|
SD Card |
Up to 64GB |
Up to 32GB |
|
DB16 DLC |
√ |
x |
|
Buttons |
1 power button |
1 power button |
|
Battery |
5000mAh |
5000mAh |
|
VCI |
All-in-one |
All-in-one |
|
Programmer |
XP200 |
XP200 |
|
Read & Write EEPROM |
√ |
√ |
|
Read & Write MCU |
√ |
√ |
|
Read & Write ECU |
√ |
√ |
|
Read & Write IMMO Box |
√ |
√ |
|
Read & Write Instrument/Airbag Module |
√ |
√ |
|
Identify Key to Generate |
√ |
√ |
|
Write Key via Dump |
√ |
√ |
|
Unlock Key |
√ |
√ (need XP400 Pro) |
|
Detect Frequency |
√ |
√ (need XP400 Pro) |
|
Generate Key |
√ |
√ |
|
Simulate Key |
√ (need APB112) |
√ (need APB112) |
|
Auto VIN |
√ |
√ |
|
Read/Clear DTCs |
√ |
√ |
|
Read Data Stream |
√ |
√ |
|
Freeze Frame |
√ |
√ |
|
Read ECU Info |
√ |
√ |
|
Action Test |
√ (soon in Aug.) |
√ |
|
Service |
√ |
√ |
|
Special Function |
√ (soon in Aug.) |
√ |
|
Report Manager |
√ |
√ |
|
Remote Desk |
√ |
√ |
|
CANFD |
√ (need adapter) |
√ (need adapter) |
|
Endoscope |
√ (optional Autel MV108/ MV105) |
√ (optional Autel MV108/ MV105) |
Product Specifications:
|
Operating System |
Android 11 |
|
Processor |
Rockchip RK3566 Quad core Processor：4x 1.8GHz(A55) |
|
Memory |
64GB |
|
Display |
7-inch LCD capacitive touchscreen with 1024x600 resolution |
|
Connectivity |
Mini USB 2.0 |
|
Sensors |
Ambient light sensor for brightness auto changing |
|
Power and Battery |
3.7 V/5000 mAh lithium-polymer battery |
|
Tested Battery Life |
Around 4.5 hours of continuous use |
|
Battery Charging Input |
5V/1.5A |
|
Power Consumption |
500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V |
|
Operating Temp |
0 to 50°C (32 to 122°F) |
|
Storage Temp |
-20 to 60°C (-4 to 140°F) |
|
Operating Humidity |
5%-95% non-condensing |
|
Net Weight |
885g(2.31|b.) |
|
Supported Automotive Protocols |
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

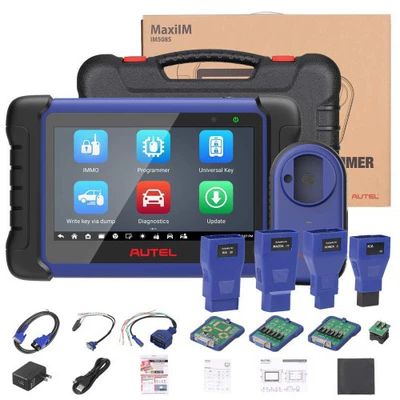

Package Includes:
1PC x MaxiIM IM508S Tablet
1PC x XP200 Key Programmer
1PC x Main Cable
1PC x Mini USB Cable
1PC x USB External Power Adapter
1PC x APB001 (EEPROM Adapter)
1PC x APB002 (68HC908 Adapter)
1PC x APA002 (EEPROM Socket)
1PC x APA001 (EEPROM Clamp Intergrated MC9S12 Cable)
1PC x AAC001 – MED17 Cable
1PC x KIA-10 Adaptor
1PC x KIA-20 Adaptor
1PC x Mazda-17 Adaptor
1PC x Honda-3 Adaptor
1PC x Carrying Case
1PC x Quick reference guide
产品中文介绍（英译中-谷歌翻译）
Autel MaxiIM IM508S 钥匙编程工具，带 XP200 编程器，所有系统诊断 34+ 服务功能
ID NO.: CTK182
产品描述
- Autel MaxiIM IM508S 钥匙编程工具，带 XP200 编程器，所有系统诊断
- 2年免费更新
Autel MaxiIM IM508S 钥匙编程工具
MaxiIM IM508S 是一款快速、易于使用且超便携的固定器和钥匙编程设备。基于Android的触摸屏平板电脑具有强大的四核处理器、直观的设计和简洁的界面。
配备XP200钥匙编程器，IM508S能够为防盗系统提供卓越的服务功能。结合快速诊断市场上大多数品牌和型号的各个模块的能力，IM508S为您提供优越的特殊功能。IM508S是商店老板和技术人员需求的完美解决方案，提供实惠且强大的IMMO和诊断服务。
产品亮点：
总共2年免费更新
强大的RK3566处理器
7英寸1024x600 LCD电容触摸屏
内部可靠的64GB内存
安卓操作系统，支持快速启动和多任务处理
强大的组合：关键编程/全系统诊断/高级维护服务
智能模式用于指导和自动化关键学习
专家模式，用于高级关键学习
读取PIN/CS（所有钥匙丢失），生成钥匙，学习钥匙，远程学习
IMMO ECU重置/适应，刷新/编码
射频识别读写，EEPROM/MCU读写
强大的原厂级诊断，适用于超过80个美国、亚洲和欧洲的汽车品牌和型号
高级维护服务包括EPB、DPF、SAS、机油重置、BMS和TPMS传感器ID重新学习
新品！支持主动测试和完成特殊功能
产品功能：
IMMO & 钥匙编程为DIYers和锁匠
如果你想要为IMMO系统或汽车钥匙做些什么，Autel IM508S扫描仪配XP200钥匙编程器可以帮助你完成以下操作：读取和写入IMMobilizer/发动机/EEPROM/ MCU；重置/编程/备份IMMO ECU；读取PIN码（添加钥匙/所有钥匙列表）；钥匙生成/钥匙学习/遥控学习等。智能模式将为你提供引导和自动化的钥匙学习功能，分步进行，省去你很多麻烦！注意：上述功能因车型而异。
XP200 专为读取大众汽车钥匙芯片数据、克隆和生成专属钥匙、读写车载 EEPROM 数据以及读写 Freescale 9S12 MCUs 而设计。通过与诊断工具和都装有编程软件的 PC 配合使用，XP200 可以快速准确地读写钥匙芯片数据。
房地产：
IMMO应用程序需要与测试车辆的IMMO电子控制系统建立数据链接，通过OBD II连接进行诊断。
应用程序检索车辆的IMMO信息并执行IMMO相关功能，包括钥匙学习、远程控制学习、远程控制添加等。
智能模式–进入功能菜单，每个功能都配置为智能引导系统。
专家模式–进入一个函数菜单，每个函数相互独立。
IMMO & 钥匙编程 :
1. 读取PIN/CS（AI键丢失）
2. 密钥生成
3. 重点学习/远程学习
4. 备份/恢复IMMO数据
5. 保险丝盒重置/适应，刷新/编码
6. BMW FEM/BDC 重点学习和 ECU 适应
7.VW / AUDI MQB 钥匙编程，48 个跳线器（96 位）钥匙克隆，完全丢失，A6 完全丢失及更多
双向控制/ 主动测试
如果雨刮器停止工作，你会怎么做？换一个或者花大价钱去修理？不要急着拆解你的车！Key Programming工具IM508S可以进行真正的主动测试，可以向车辆的ECU发送命令，驱动执行器工作，比如ABS、车窗、车门、电磁阀、阀门、雨刮器、大灯等，帮助你快速找出坏掉的部件并准确找出故障问题。注意：不是通用的。请检查兼容性。
OE-level诊断能力，与MK808相同
长时间忙碌但找不到汽车问题所在？别急！Autel IM508S 扫描仪，具备与 MK808 相同的诊断能力，可以扫描 80 多种美国、欧盟和亚洲汽车品牌的可用汽车系统，读取和清除 DTCs、查看实时数据、冻结帧数据和 ECU 信息，执行主动测试，并与 MV108 兼容（不包括）。只需几次简单点击，您就可以快速定位问题，赢得更多时间和金钱。
34种维修服务，一切为您服务。
机油重置，电子驻车制动，胎压监测系统，电池管理系统，制动液排放，后处理系统，喷油器，SAS系统，悬架系统，节气门， win dr roof，座椅，里程表，语言更改，前大灯，更改轮胎尺寸，技术学习，防抱死制动系统，气缸，可变几何涡轮学习，速度和PTO，离合器，变速器适配，安全气囊重置，空气/燃油设置，自动启动/停止，电子水泵启动，废气再循环，FRM重置，运输模式，混合动力电池，自适应巡航控制，空调，雨/光传感器。
你花了多少钱来维护你的汽车？事实上，经验告诉我们，仅仅一个小修理服务可能就要花很多钱。所以Autel IM508S扫描仪通过整合28+项服务，积极减少不必要的开支，满足许多日常服务需求，如机油/电子驻车/ASR/DPF/BMS/ABS放气/喷油器等。注意：功能因车辆而异，请在下单前将VIN发送给我们以检查兼容性。
Autel MaxiIM IM508S 功能列表：
系统诊断
AutoVIN / AutoScan
读/擦除代码
查看、记录、回放实时数据
查看冻结画面数据
商店和数据管理器应用程序
密钥读/写
EEPROM / MCU 读 / 写
读取PIN/CS（所有钥匙丢失）
密钥生成
关键学习
远程学习
备份/恢复IMMO数据
IMMO ECU重置/适应
IMMO ECU 刷新 / 编码
宝马 FEM / BDC 关键学习和 ECU 适应
VW / AUDI MQB 重要学习，48 个发射器（96位）增加钥匙，所有钥匙丢失，A6 所有钥匙丢失，等等
Autel IM508S 对比 IM508
|
项目 |
Autel MaxiIM IM508S |
Autel MaxiIM IM508 |
|
硬件 |
触摸屏平板电脑和程序员 |
触摸屏平板电脑和程序员 |
|
连接 |
连线 |
连线 |
|
自动扫描 |
√ |
√ |
|
引导功能 |
√ |
√ |
|
IMMO 扫描 |
√ |
√ |
|
IMMO 功能 |
综合 |
综合 |
|
诊断功能 |
基础 |
基础 |
|
处理器 |
Rockchip RK3566 四核，4x 1.8GHz（A55） |
Rockchip RK3188 四核，4x 1.6GHz（A9） |
|
系统 |
安卓 11 |
安卓 4.4.4 |
|
随机存取存储器 |
4GB |
1GB |
|
只读存储器 |
64GB |
32/64GB |
|
屏幕/ 分辨率 |
7 英寸，1024*600 |
7 英寸，1024*600 |
|
Wi-Fi |
√ |
√ |
|
通用串行总线 |
USB 2.0: (1 USB 主机 Type A, 1 USB 迷你设备) |
USB 2.0: (1 USB 主机 Type A, 1 USB 迷你设备) |
|
SD卡 |
最高64GB |
最高32GB |
|
DB16 DLC |
√ |
输入： x |
|
按钮 |
1 电源按钮 |
1 电源按钮 |
|
电池 |
5000毫安时 |
5000毫安时 |
|
车辆控制接口 |
一体化 |
一体化 |
|
程序员 |
XP200 |
XP200 |
|
读写EEPROM |
√ |
√ |
|
读写MCU |
√ |
√ |
|
读写ECU |
√ |
√ |
|
阅读和写入IMMO Box |
√ |
√ |
|
读写装置/安全气囊模块 |
√ |
√ |
|
识别生成密钥 |
√ |
√ |
|
通过转储写入密钥 |
√ |
√ |
|
解锁密钥 |
√ |
√ (需要 XP400 Pro) |
|
检测频率 |
√ |
√ (需要 XP400 Pro) |
|
生成密钥 |
√ |
√ |
|
模拟键 |
√ (需要APB112) |
√ (需要 APB112) |
|
汽车 VIN |
√ |
√ |
|
读取/清除故障码 |
√ |
√ |
|
读取数据流 |
√ |
√ |
|
定格画面 |
√ |
√ |
|
读取ECU信息 |
√ |
√ |
|
行动测试 |
√ (很快将在八月) |
√ |
|
服务 |
√ |
√ |
|
特殊功能 |
√（预计8月内推出） |
√ |
|
报告管理器 |
√ |
√ |
|
远程办公桌 |
√ |
√ |
|
控制器局域网故障诊断 |
√ (需要适配器) |
√ (需要适配器) |
|
内窥镜 |
√ （可选 Autel MV108/ MV105） |
√ （可选 Autel MV108/ MV105） |
产品规格：
|
操作系统 |
安卓 11 |
|
处理器 |
Rockchip RK3566 四核处理器：4x 1.8GHz（A55） |
|
记忆 |
64GB |
|
显示 |
7英寸LCD电容式触摸屏，分辨率为1024x600 |
|
连接性 |
Mini USB 2.0 |
|
传感器 |
环境光传感器用于亮度自动调节 |
|
动力与电池 |
3.7 V/5000 mAh 锂聚合物电池 |
|
测试电池寿命 |
大约4.5小时的连续使用 |
|
电池充电输入 |
5V/1.5A |
|
功耗 |
500 mA (LCD 开启，亮度默认，Wi-Fi 开启) @3.7 V |
|
工作温度 |
0到50°C (32到122°F) |
|
储存温度 |
-20至60°C (-4至140°F) |
|
运行湿度 |
5%-95% 非冷凝 |
|
净重 |
885克（2.31盎司） |
|
支持的汽车协议 |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, 闪存代码, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (高速, 中速, 低速和单线CAN, 故障容错CAN), SAE J2610, GM UART, UART回显字节协议, 本田诊断-H协议, TP2.0, TP1.6 |
包含内容：
1PC x MaxiIM IM508S 平板电脑
1PC x XP200 钥匙编程器
1PC x 主电缆
1PC x 迷你USB电缆
1个 x USB外部电源适配器
1PC x APB001 (EEPROM适配器)
1PC x APB002 (68HC908 适配器)
1PC x APA002（EEPROM座）
1PC x APA001 (EEPROM夹式MC9S12电缆)
1PC x AAC001 – MED17 电缆
1PC x KIA-10适配器
1PC x KIA-20 适配器
1PC x Mazda-17 适配器
1PC x Honda-3 适配器
1个 x 便携盒
1PC x 快速参考指南
