| Brend | Səkkiz at |
| Material | ABS |
| Mənşə | Shenzhen |
| Fərdi emal | Bəli |
| Növ | Vizual tərs radar |
| Model | PZ609 |
| Uyğun modellər | Universal |
| Ekran növü | TFT |
| Enerji təchizatı gərginliyi | 12V |
| Güc | 1 |
| Zondu | 4 |
| Siqnal bildirişi | Bəli |
| Aşkarlama diapazonu | Fara |
| Xatırlatma növü | Səs |
| İşləmə temperaturu | -40~+80 |
| Ekran ölçüsü | 4.3 inch |
| Çəki | 450 |
Features & Functions
1.Display:4.3" inch digital TFT LCD mirror
2.Aspect ratio:4:3
3.Resolution:320RGB*240
4.Video input:2 way video
5.Can be connected with the camera and parking sensors
6.2,4 sensors for option
7.Alarm by three-step bibi sound
8.Display the distance on the screen
Technical Specifications
|
Voltage |
9DCV15DCV |
|
Rated Voltage |
12DCV |
|
Power Cost |
Max 2.5W |
|
Respond Distance |
0.4m-2.0m |
|
Alarm Distance |
0m-2.0m |
|
Error |
-5mm, +2mm |
|
Display Mode |
4.3" digital TFT-LCD |
|
Display Resolution |
320RGB*240 |
|
Camare Pixels: |
512*582 pixels (7070) |
|
Video Input |
two way(V1 and V2) |
|
lsb |
1cm |
|
Sensor Diamete |
22mm |
|
Install mode |
drill |
|
Sensor Angle |
XY60 |
|
Work Temperature |
-30---+80 |
|
Alarm Type |
Buzzer (Bi Bi.) |
|
Alarm Volume |
65dB |
|
Alarm Frequency |
1.6-2.0m whisht 1.1-1.5m 1HZ slowness 0.6-1.0m:3HZ commonly 0-0.4m 7HZ hurry |

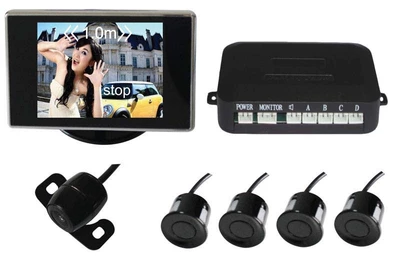

Full set including: 1pc display / 1pc camera / 1pc control box / 4 sensors / drill/ speaker/ 6M vedio cable/1.5M power cable
Display photo:
Sensors color is option . sensor shape also can upon custom request .
Self designed control box:
Gift box:
Truck Rear View Camera Technical Specifications:
1,TV Systems: NTSC/PAL
2, Image Sensors: Color CMOS
3,Total Pixels: 688*488
4, Resolution: 600 TV Lines
5, Lens: 2.8mm
6,Video Output: 1.0vp-p composite video at 75ohm
7, Power Supply: DC 9V-15V
8,Operating Temperature (Deg. C) -30o C~ +70o C
9,Water Proof, Anti-Shock
7'' LCD Monitor Main features:
7 inch tft-lcd stand monitor
Two way vedio input, V1 and V2
Full Function Remote Control
Auto switch when back the vehicle
Display mode : 16 : 9
Format : PAL or NTSC
Pixels : 480(W) × RGB × 234(H)
Power supply : DC 12V ~ 36V DC
Parking Sensor Features:
1,alarm by three-step bibi sound
2,display the distance from obstacle and its direction
3,4pcs parking sensors
4. detection distance: 0.3m~ 2.0M
Packing List:
--7 inch LCD Monitor x 1pc
--Truck Camera x 1pc
--10M Video Cable x 1pc
--Buzzer x 1npc
--Main devise x 1pcs
--Parking Sensor x 1pc
--User Manual
--Power Cables
--AV Cable
